Connector End View C4109b - Subwoofer Amplifier Rear

OEM Connector End Views

Source configuration appliesSource reference 4,451HTML edition

← Chapter contents Manual collection

14B644

Base Part #

part# N/A

Service Pigtail

See Below

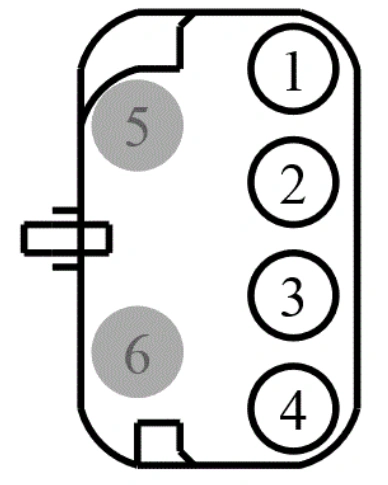

Connector End View C4109b - Subwoofer Amplifier Rear — original illustration 1, reference 4451Original colors & callouts · Select to enlarge

Pin	Circuit	Gauge	Circuit Function
1	* (BU-WH)	*	SUBWOOFER REAR
2	* (BU)	*	SUBWOOFER REAR
3	* (RD-WH)	*	SUBWOOFER REAR
4	* (RD)	*	SUBWOOFER REAR
5	*	*	Not Used
6	*	*	Not Used
