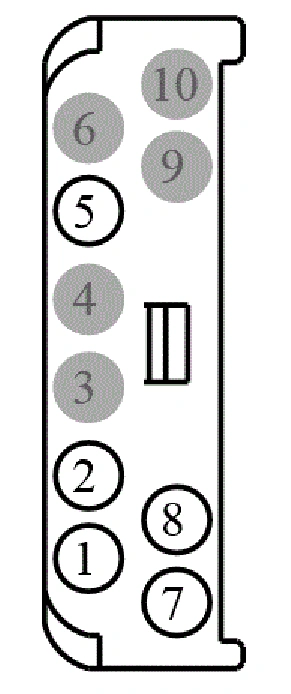

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | SME23 (VT-RD) 22 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE | ||
2 | GD313 (BK-GN) 14 | GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT | ||
3 | * | * | Not Used | |
4 | * | * | Not Used | |
5 | SBP05 (GY-RD) 14 | FUSE - 5 OR CIRCUIT BREAKER | ||
6 | * | * | Not Used |
