CONNECTOR VIEWS > CONNECTOR END VIEW C4082 - AUDIO ANTENNA

Connector:C4082

Description

AUDIO ANTENNA

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

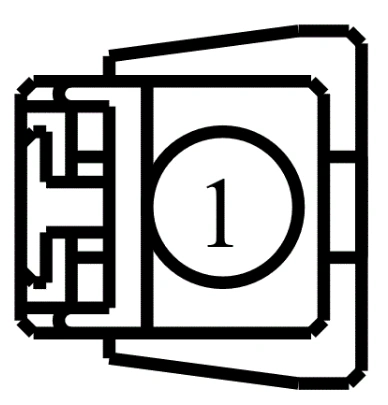

Connector End View C4082 - Audio Antenna — original illustration 1, reference 4446Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CME44 (YE-GN)	20	CTRL MOD. - ANTENNA POWER # REAR WINDOW
