Connector End View C4046b - License Plate Lamp RH

OEM Connector End Views

Source configuration appliesSource reference 4,445HTML edition
← Chapter contentsManual collection

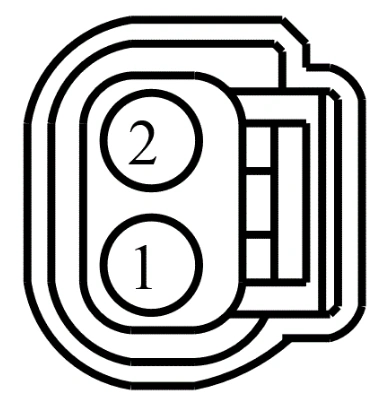

Connector End View C4046b - License Plate Lamp RH — original illustration 1, reference 4445Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

GD301 (BK-BU)

22

GROUND - PILLAR C OR QUARTER PANEL LEFT # 3RD POINT

2

CLS30 (VT-WH)

22

RELAY - PARK LAMP

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-986 3U2Z-14S411-SLB

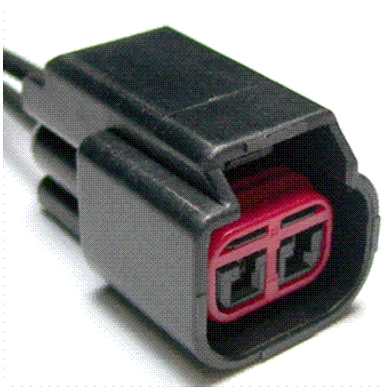

Connector End View C4046b - License Plate Lamp RH — original illustration 2, reference 4445Original colors & callouts · Select to enlarge

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses

Coil - Ignition

Ford_Mustang_all_2015-2017.pdf · source reference 4445
