Connector End View C4046a - License Plate Lamp LH — OEM Connector End Views · Reference 4442

2 * * Not Used CTRL MOD. - POWERTRAIN # FUEL PUMP COMMAND 3 VE225 (YE-OG) 22 (FPC) 4 GD347 (BK-VT) 12 GROUND - PILLAR C OR QUARTER PANEL LEFT 5 CE515 (YE-GY) 12 DRIVER - FUEL PUMP POWER (FPPWR) 6 * * Not Used 7 VE518 (BN-WH) 22 MONITOR - FUEL PUMP (FPM) RE515 8 12 DRIVER - FUEL PUMP RETURN (FPRTN) (WH-BN)

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1332 DU2Z-14S411-CA

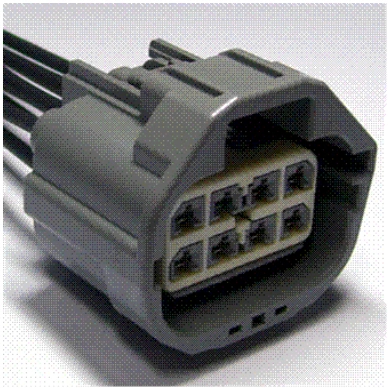

Connector End View C4046a - License Plate Lamp LH — original illustration 1, reference 4442Original colors & callouts · Select to enlarge

Gauge:

14

Pin material:

Tin

Cavities:

8

Vehicle Uses

Module - Fuel Pump Driver

CONNECTOR VIEWS > CONNECTOR END VIEW C4046A - LICENSE PLATE LAMP LH

Connector:C4046A

Ford_Mustang_all_2015-2017.pdf · source reference 4442

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
