CONNECTOR VIEWS > CONNECTOR END VIEW C4033 - FUEL PUMP CONTROL

MODULE

Connector:C4033

Description

FUEL PUMP CONTROL MODULE

Color

LT GY

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

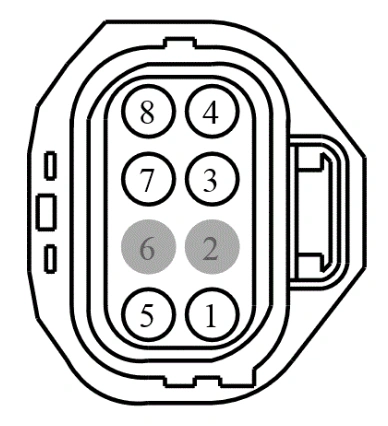

Connector End View C4033 - Fuel Pump Control Module — original illustration 1, reference 4441Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE608 (VT-GN)	12	RELAY - FUEL PUMP (VPWR)
