Connector End View C4046b - License Plate Lamp RH

OEM Connector End Views

Source configuration appliesSource reference 4,444HTML edition

← Chapter contents Manual collection

Service Part Number:

3U2Z-14S411-SLB

Pigtail Kit Part Number

Gauge:

WPT-986

14

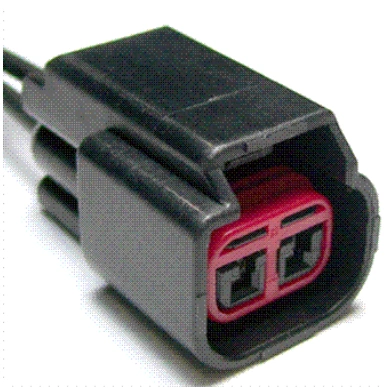

Connector End View C4046b - License Plate Lamp RH — original illustration 1, reference 4444Original colors & callouts · Select to enlarge

Pin material:

Tin

Cavities:

2

Vehicle Uses

Coil - Ignition

Lamp - License

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position

CONNECTOR VIEWS > CONNECTOR END VIEW C4046B - LICENSE PLATE LAMP RH

Connector:C4046B

Description

LICENSE PLATE LAMP RH

Color

Harness

13412

Base Part #

part# N/A

Service Pigtail

See Below
