Connector End View C4012 - Rear Inner Parking Aid Sensor RH

OEM Connector End Views

Source configuration appliesSource reference 4,439HTML edition

← Chapter contents Manual collection

Color

Harness

13412

Base Part #

part# N/A

Service Pigtail

See Below

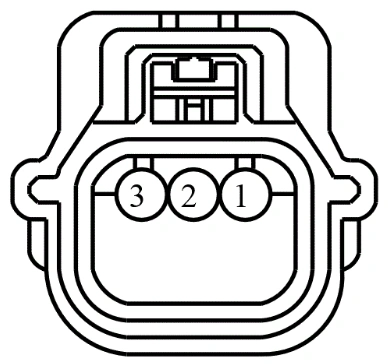

Connector End View C4012 - Rear Inner Parking Aid Sensor RH — original illustration 1, reference 4439Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR +
2	VMP16 (YE-GY)	22	SENSOR - PARKING AID # REAR # (RIGHT INNER)
3	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1400	Service Part Number: 9U2Z-14S411-CC Gauge:

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1400

Service Part Number:

9U2Z-14S411-CC

Gauge:
