Connector End View C4011 - Rear Outer Parking Aid Sensor RH

OEM Connector End Views

Source configuration appliesSource reference 4,436HTML edition

← Chapter contents Manual collection

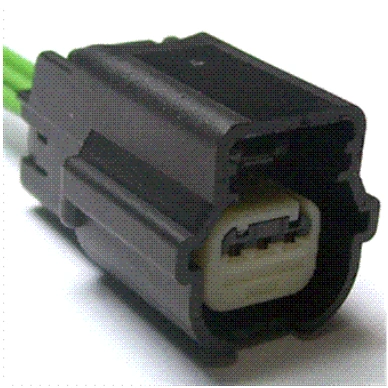

Connector End View C4011 - Rear Outer Parking Aid Sensor RH — original illustration 1, reference 4436Original colors & callouts · Select to enlarge

Vehicle Uses

Monitor - Crankcase Ventilation

Sensor - Air Suspension

Sensor - Front Park Aid (FPA)

Sensor - Occupant Classification

Sensor - Reverse Park Aide (RPA)

Switch - A/C Compressor Clutch Cycling

Switch - A/C High Pressure

CONNECTOR VIEWS > CONNECTOR END VIEW C4011 - REAR OUTER PARKING AID

SENSOR RH

Connector:C4011

Description

REAR OUTER PARKING AID SENSOR RH

Color

Harness

13412

Base Part #

part# N/A

Service Pigtail

See Below
