Connector End View C4011 - Rear Outer Parking Aid Sensor RH

OEM Connector End Views

Source configuration appliesSource reference 4,437HTML edition
← Chapter contentsManual collection

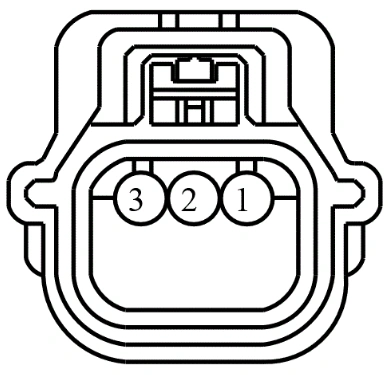

Connector End View C4011 - Rear Outer Parking Aid Sensor RH — original illustration 1, reference 4437Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

LMP07 (BU-WH)

22

CTRL MOD. - PARKING AID # SENSORS REAR +

2

VMP17 (YE-OG)

22

SENSOR - PARKING AID # REAR # (RIGHT OUTER)

3

RMP07 (GN-WH)

22

CTRL MOD. - PARKING AID # SENSORS REAR -

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1400 9U2Z-14S411-CC

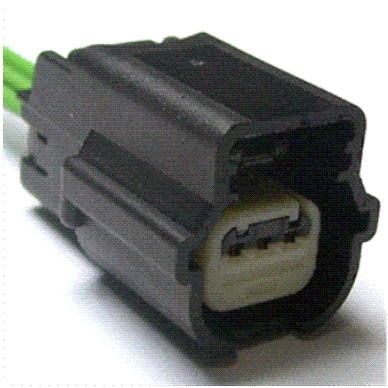

Connector End View C4011 - Rear Outer Parking Aid Sensor RH — original illustration 2, reference 4437Original colors & callouts · Select to enlarge

Gauge:

20

Pin material:

Silver

Cavities:

3

Vehicle Uses

Monitor - Crankcase Ventilation
