CONNECTOR VIEWS > CONNECTOR END VIEW C4010 - REAR INNER PARKING AID

SENSOR LH/CENTER

Connector:C4010

Description

REAR INNER PARKING AID SENSOR LH/CENTER

Color

Harness

13412

Base Part #

part# N/A

Service Pigtail

See Below

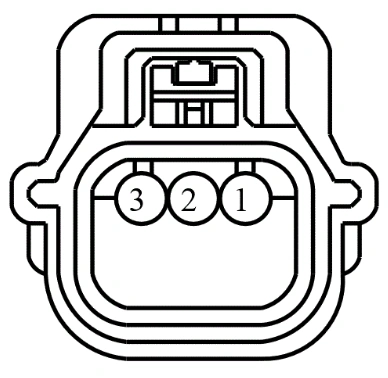

Connector End View C4010 - Rear Inner Parking Aid Sensor LH/Center — original illustration 1, reference 4434Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

LMP07 (BU-WH) 22

CTRL MOD. - PARKING AID # SENSORS REAR +

2

VMP14 (WH-OG)

22

SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)

Ford_Mustang_all_2015-2017.pdf · source reference 4434
