Connector End View C4116 - Evaporative Emission Canister Vent Solenoid

OEM Connector End Views

Source configuration appliesSource reference 4,452HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-663 3U2Z-14S411-ANAA

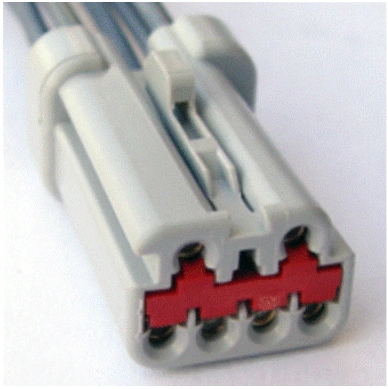

Connector End View C4116 - Evaporative Emission Canister Vent Solenoid — original illustration 1, reference 4452Original colors & callouts · Select to enlarge

Gauge:

16

Pin material:

Tin

Cavities:

6

Vehicle Uses

Motor - Heater/AC Blower (Front)

CONNECTOR VIEWS > CONNECTOR END VIEW C4116 - EVAPORATIVE EMISSION

CANISTER VENT SOLENOID

Connector:C4116

Description

EVAPORATIVE EMISSION CANISTER VENT SOLENOID

Color

Harness

14A411

Base Part #

part# N/A

Service Pigtail

See Below
