Connector End View C4116 - Evaporative Emission Canister Vent Solenoid — OEM Connector End Views · Reference 4453

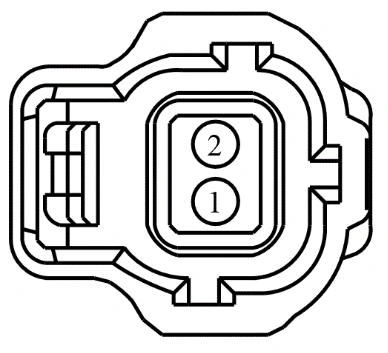

Connector End View C4116 - Evaporative Emission Canister Vent Solenoid — original illustration 1, reference 4453Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	16	FUSE - 40 OR CIRCUIT BREAKER (VPWR 2)
2	CE114 (GN-BU)	16	CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANV)

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-JZA

WPT-322

Gauge:

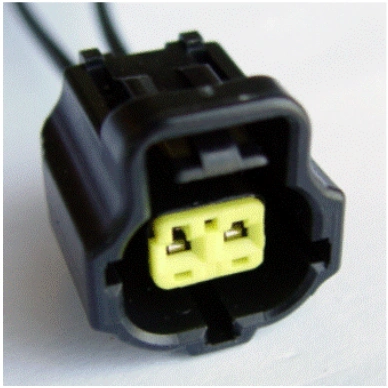

Connector End View C4116 - Evaporative Emission Canister Vent Solenoid — original illustration 2, reference 4453Original colors & callouts · Select to enlarge

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Resistor - Daytime Running Lamp (DRL)

Sensor - Air Charge Temperature

Sensor - Brake Pressure

Ford_Mustang_all_2015-2017.pdf · source reference 4453
