7 VME22 (VT-GN) 22 CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO + RME22 8 22 CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO - (GN-WH) 9 * * Not Used 10 * * Not Used
Original table alignment retained · Scroll horizontally if needed
Available Pigtail Kits
Service Part Number:
Pigtail Kit Part Number
3U2Z-14S411-CAAA
WPT-667
Gauge:
14
Pin material:
Tin
Cavities:
10
Vehicle Uses
Motor - Heater/AC Blower (Front)
Sensor - Headlamp Leveling

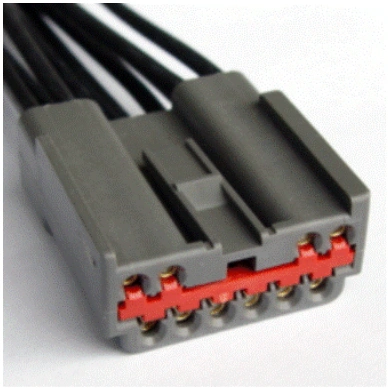

CONNECTOR VIEWS > CONNECTOR END VIEW C4109B - SUBWOOFER AMPLIFIER
REAR
Connector:C4109B
Description
SUBWOOFER AMPLIFIER REAR
Color
Harness
