Connector End View C4357 - Rear Parking Aid Camera

OEM Connector End Views

Source configuration appliesSource reference 4,458HTML edition

← Chapter contents Manual collection

18

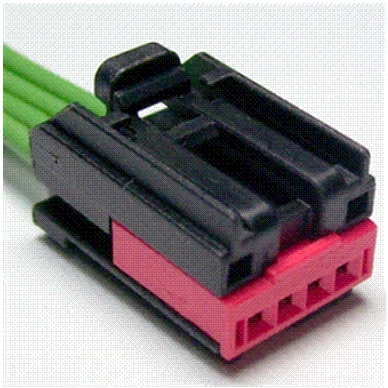

Connector End View C4357 - Rear Parking Aid Camera — original illustration 1, reference 4458Original colors & callouts · Select to enlarge

Pin material:

Silver

Cavities:

4

Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate

Actuator - Liftgate Glass

Switch - Deck Lid / Lift Gate Ajar

Switch - Steering Column Tilt/Telescope

CONNECTOR VIEWS > CONNECTOR END VIEW C4357 - REAR PARKING AID

CAMERA

Connector:C4357

Description

REAR PARKING AID CAMERA

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below
