Check for Terminal Part Numbers

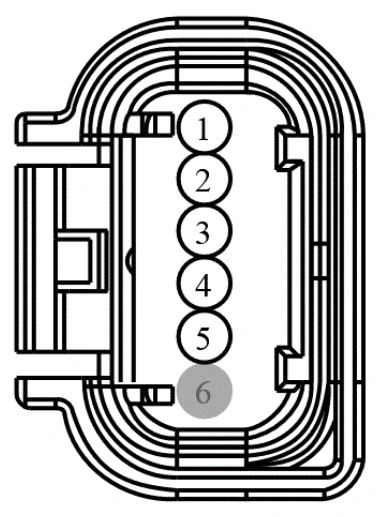

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CBB66 (BU-WH) | 22 | FUSE - 66 OR CIRCUIT BREAKER | |
2 | VDN04 (VT-WH) | 22 | CTRL MOD. - LIN BUS # SPDJB 4 | |
3 | RMP19 (BN-VT) | 22 | CAMERA - PARKING AID REAR VIDEO - | |
4 | VMP19 (WH-GN) | 22 | CAMERA - PARKING AID REAR VIDEO + | |
5 | DMP19 (BK) | 22 | CAMERA - PARKING AID REAR VIDEO D | |
6 | * | * | Not Used |
Available Pigtail Kits
