CONNECTOR VIEWS > CONNECTOR END VIEW C4370 - SIDE OBSTACLE

DETECTION CONTROL MODULE RH (SODR)

Connector:C4370

Description

SIDE OBSTACLE DETECTION CONTROL MODULE RH (SODR)

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

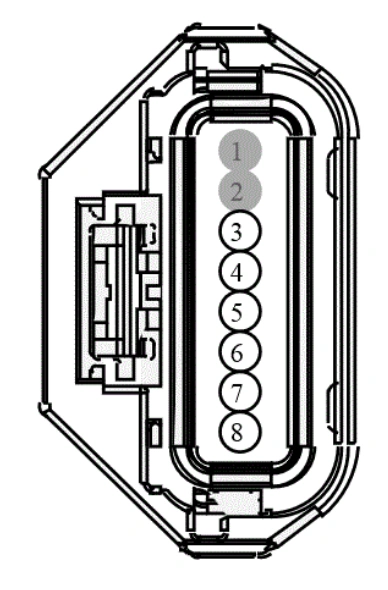

Connector End View C4370 - Side Obstacle Detection Control Module RH (Sodr) — original illustration 1, reference 4468Original colors & callouts · Select to enlarge

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

*

*

Not Used
