CONNECTOR VIEWS > CONNECTOR END VIEW C4374 - FUEL LEVEL SENSOR

Connector:C4374

Description

FUEL LEVEL SENSOR

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

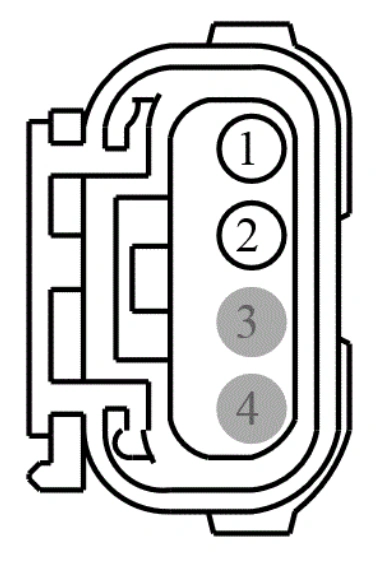

Connector End View C4374 - Fuel Level Sensor — original illustration 1, reference 4470Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RMC33 (WH-VT)	18	CTRL MOD. - SENSOR FUEL LEVEL 2
