Connector End View C4378 - Keyless Entry Rear Antenna

OEM Connector End Views

Source configuration appliesSource reference 4,472HTML edition

← Chapter contents Manual collection

Connector:C4378

Description

KEYLESS ENTRY REAR ANTENNA

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

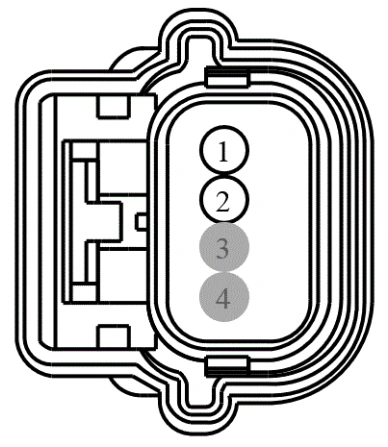

Connector End View C4378 - Keyless Entry Rear Antenna — original illustration 1, reference 4472Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK06 (GY-VT)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) +
2	RPK06 (BU-WH)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) -
