Connector End View C4425 - Heated Rear Window Element

OEM Connector End Views

Source configuration appliesSource reference 4,475HTML edition
← Chapter contentsManual collection

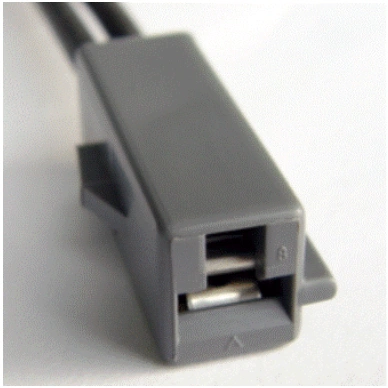

Connector End View C4425 - Heated Rear Window Element — original illustration 1, reference 4475Original colors & callouts · Select to enlarge

Capacitor - Ignition/Radio

CONNECTOR VIEWS > CONNECTOR END VIEW C4425 - HEATED REAR WINDOW

ELEMENT

Connector:C4425

Description

HEATED REAR WINDOW ELEMENT

Color

GY

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 4475
