Check for Terminal Part Numbers

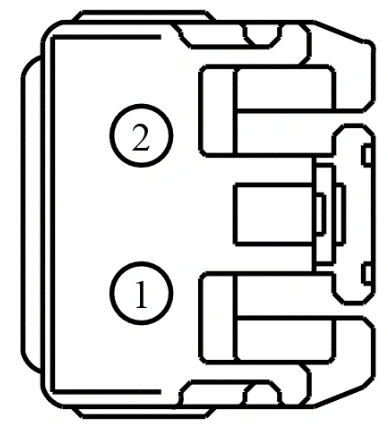

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CRD17 (GY) | 10 | RELAY - HEATER MIRROR | |
2 | GD348 (BK-YE) | 12 | GROUND - PILLAR C OR QUARTER PANEL RIGHT |
Available Pigtail Kits
Service Part Number:
Pigtail Kit Part Number
3U2Z-14S411-PA
WPT-236
Gauge:
10
Pin material:
Tin
Cavities:
2
Vehicle Uses
Mirror - Vanity
Module - Seat Memory
