Connector End View C4823 - Audio Antenna

OEM Connector End Views

Source configuration appliesSource reference 4,479HTML edition

← Chapter contents Manual collection

SBP32 (VT-RD)

FUSE - 32 OR CIRCUIT BREAKER

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

6U2Z-14S411-LB

WPT-958

Gauge:

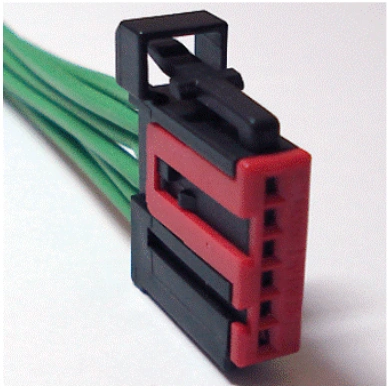

Connector End View C4823 - Audio Antenna — original illustration 1, reference 4479Original colors & callouts · Select to enlarge

18 20

Pin material:

Tin & Silver

Cavities:

6

Vehicle Uses

Antenna - GPS

Module - Global Positioning

CONNECTOR VIEWS > CONNECTOR END VIEW C4823 - AUDIO ANTENNA

Connector:C4823

Description

AUDIO ANTENNA

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

Not Available
