Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CME44 (YE-GN) | 22 | CTRL MOD. - ANTENNA POWER # REAR WINDOW | |
1 | CME44 (YE-GN) | 20 | CTRL MOD. - ANTENNA POWER # REAR WINDOW | |
2 | * | * | Not Used |

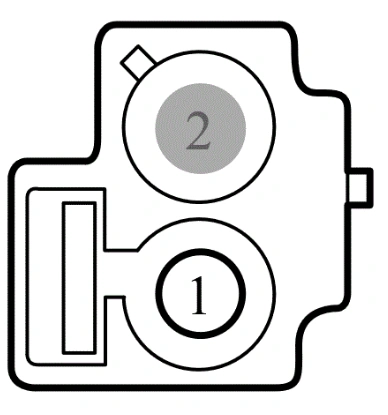

CONNECTOR VIEWS > CONNECTOR END VIEW C4828 - ACTIVE NOISE CONTROL
MICROPHONE LEFT REAR
Connector:C4828
Description
ACTIVE NOISE CONTROL MICROPHONE LEFT REAR
Color
BK
Harness
14A005
Base Part #
part# N/A
Service Pigtail
