Check for Terminal Part Numbers

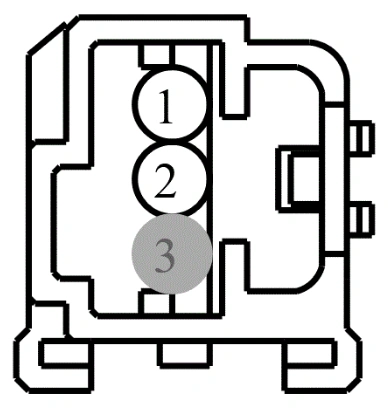

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VMEA0 (BU-GN) | 22 | MICROPHONE - AMBIENT NOISE 3 + | |
2 | RMEA0 (WH-OG) | 22 | MICROPHONE - AMBIENT NOISE 3 - | |
3 | * | * | Not Used |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1103 | Service Part Number: 3U2Z-14S411-EXAB Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses |
