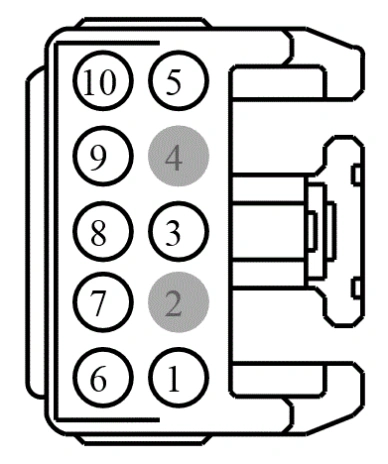

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | LPRC1 (YE-OG) | 22 | CTRL MOD. - CONVERTIIBLE TOP LATCH SOLENOID # VPWR | |
2 | * | * | Not Used | |
3 | LPRC1 (YE-OG) | 22 | CTRL MOD. - CONVERTIIBLE TOP LATCH SOLENOID # VPWR | |
4 | * | * | Not Used | |
5 | GD347 (BK-VT) 14 | GROUND - PILLAR C OR QUARTER PANEL LEFT | ||
6 | SBB17 (RD) | 14 | FUSE - 17 OR CIRCUIT BREAKER | |
7 | VPRC1 (BU-GN) | 22 | CTRL MOD. - CONVERTIIBLE TOP LATCH SOLENOID # SIGNAL | |
8 | CPR23 (BU-OG) | 22 | SWITCH - CONVERTIBLE ROOF DOWN |
