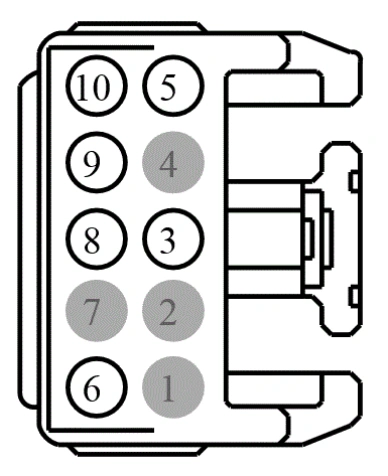

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | * | * | Not Used | |
3 | GD348 (BK-YE) 14 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | ||
4 | * | * | Not Used | |
5 | GD348 (BK-YE) 14 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | ||
6 | SBB15 (WH-RD) | 14 | FUSE - 15 OR CIRCUIT BREAKER | |
7 | * | * | Not Used | |
8 | CPR24 (GN-VT) 22 | SWITCH - CONVERTIBLE ROOF UP | ||
9 | VDB06 (GY-OG) 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
