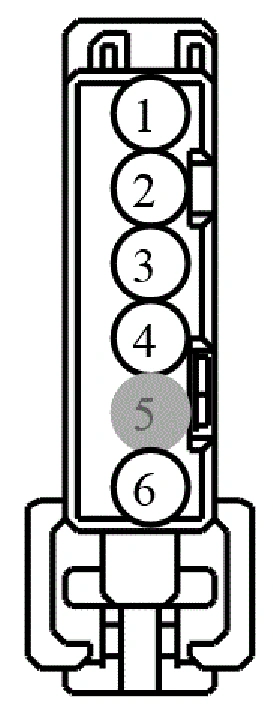

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | GD239 (BK-YE) | 20 | GROUND - COWL SIDE/PILLAR A RIGHT # 2ND POINT | |
2 | VPL56 (BU) | 26 | RECEIVER - REMOTE RF | |
3 | VDB07 (VT) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
4 | VDB06 (GY) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
5 | * | * | Not Used |
