Connector End View C4398 - Noise Suppression Capacitor

OEM Connector End Views

Source configuration appliesSource reference 4,473HTML edition

3	*	*	Not Used
4	*	*	Not Used

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number CU2Z-14S411-AGA

WPT-1307 Gauge:

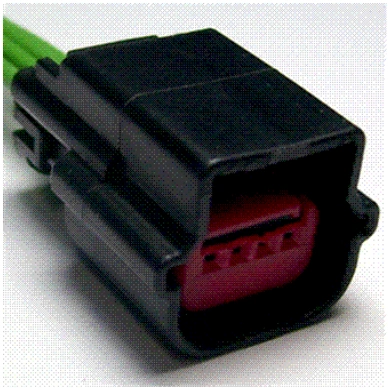

Connector End View C4398 - Noise Suppression Capacitor — original illustration 1, reference 4473Original colors & callouts · Select to enlarge

18

Pin material:

Silver

Cavities:

4

Vehicle Uses

Antenna - Keyless Entry

Sensor - Brake Pedal Position

Sensor - Clutch Master Cylinder

CONNECTOR VIEWS > CONNECTOR END VIEW C4398 - NOISE SUPPRESSION

CAPACITOR

Connector:C4398

Description

NOISE SUPPRESSION CAPACITOR

Color

Harness

14A005

Base Part #
