Connector End View C4398 - Noise Suppression Capacitor

OEM Connector End Views

Source configuration appliesSource reference 4,474HTML edition
← Chapter contentsManual collection

part# N/A

Service Pigtail

See Below

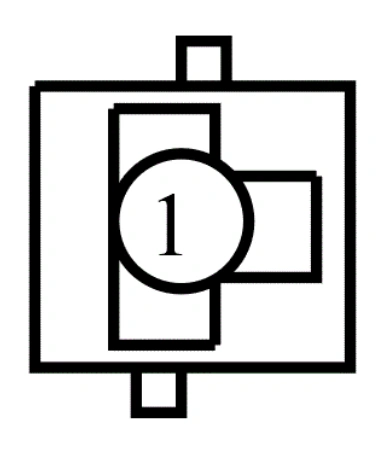

Connector End View C4398 - Noise Suppression Capacitor — original illustration 1, reference 4474Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CLS17 (YE-GY)

22

CTRL MOD. - STOP HIGH MOUNT

Available Pigtail Kits

Pigtail Kit Part Number

WPT-352

Service Part Number:

3U2Z-14S411-HNA

Gauge:

12

Pin material:

Tin

Cavities:

1

Vehicle Uses
