Connector End View C4848 - Convertible Top Sensor LH

OEM Connector End Views

Source configuration appliesSource reference 4,492HTML edition

← Chapter contents Manual collection

GD347 (BK-VT)

14A005

CONNECTOR VIEWS > CONNECTOR END VIEW C4848 - CONVERTIBLE TOP

SENSOR LH

Connector:C4848

Description

CONVERTIBLE TOP SENSOR LH

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

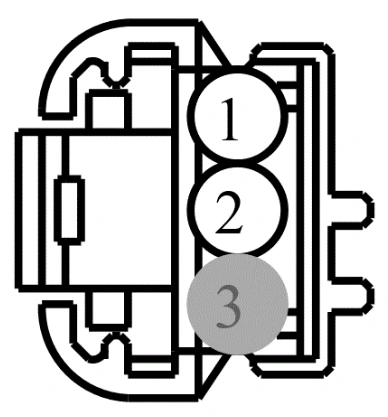

Connector End View C4848 - Convertible Top Sensor LH — original illustration 1, reference 4492Original colors & callouts · Select to enlarge

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPRC2 (WH-BN) 22		CTRL MOD. - CONVERTIIBLE TOP SENSOR LH # SIGNAL
