Connector End View C4849 - Convertible Top Sensor RH

OEM Connector End Views

Source configuration appliesSource reference 4,494HTML edition

← Chapter contents Manual collection

Description

CONVERTIBLE TOP SENSOR RH

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

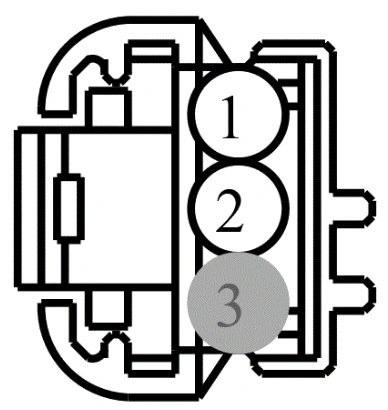

Connector End View C4849 - Convertible Top Sensor RH — original illustration 1, reference 4494Original colors & callouts · Select to enlarge

Pin	Circuit	Gauge	Circuit Function
1	VPRC2 (WH-BN) 22		CTRL MOD. - CONVERTIIBLE TOP SENSOR RH # SIGNAL
2	LPRC1 (YE-OG)	22	CTRL MOD. - CONVERTIIBLE TOP SENSOR RH # VPWR
3	*	*	Not Used

Available Pigtail Kits
