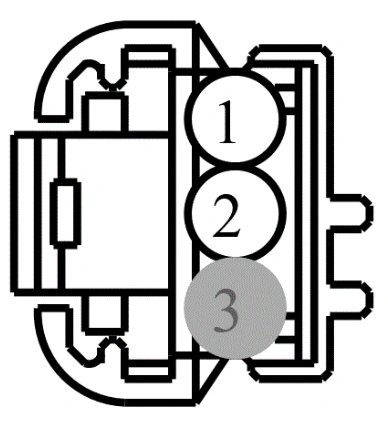

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VME57 (YE-VT) | 22 | MICROPHONE - AMBIENT NOISE + | |
2 | RME57 (BU-BN) | 22 | MICROPHONE - AMBIENT NOISE - | |
3 | * | * | Not Used |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-911 | Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses |
Ford_Mustang_all_2015-2017.pdf · source reference 4511
