Check for Terminal Part Numbers

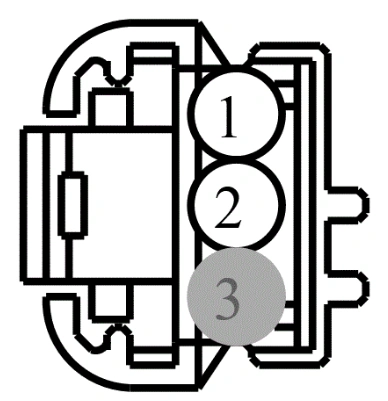

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VPRC1 (BU-GN) | 22 | CTRL MOD. - CONVERTIIBLE TOP LATCH SOLENOID # SIGNAL | |
2 | LPRC1 (YE-OG) | 22 | CTRL MOD. - CONVERTIIBLE TOP LATCH SOLENOID # VPWR | |
3 | * | * | Not Used |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-911 | Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 |
