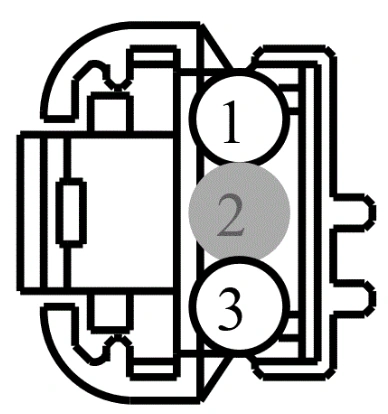

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VME10 (WH-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + | |
1 | VME16 (VT-GY) 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT MIDDLE + | ||
2 | * | * | Not Used | |
3 | RME10 (WH-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - | |
3 | RME16 (YE-GY) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT MIDDLE - |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-911 | Service Part Number: 8U2Z-14S411-LA Gauge: 18 |
