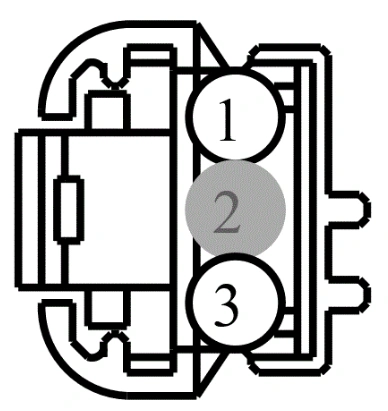

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VME07 (WH) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + | |
1 | VME15 (GN-BU) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT MIDDLE + | |
2 | * | * | Not Used | |
3 | RME07 (WH-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - | |
3 | RME15 (GY-BU) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT MIDDLE - |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-911 | Service Part Number: 8U2Z-14S411-LA Gauge: 18 |
