Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CR109 (BN-BU) | 22 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + | |
2 | RR109 (BU-GN) | 22 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - |
Available Pigtail Kits
Service Part Number:
BU2Z-14S411-BHA
Gauge:
Pigtail Kit Part Number
20
WPT-1225
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses
Airbag - Side Curtain
Pretensioner - Seat Belt (Driver)
Pretensioner - Seat Belt (Passenger)
Sensor - Side Impact
Squib - Airbag (Driver)
Squib - Airbag (Passenger)

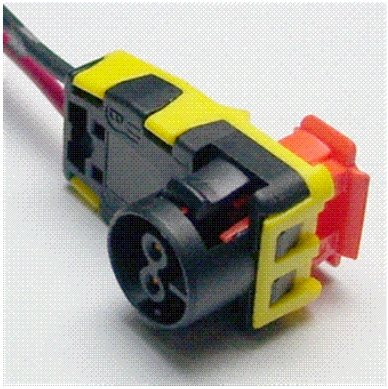

CONNECTOR VIEWS > CONNECTOR END VIEW C9032 - RH SIDE AIR CURTAIN
Connector:C9032
Description
RH SIDE AIR CURTAIN
Color
