CONNECTOR VIEWS > CONNECTOR END VIEW C9031 - LH SIDE AIR CURTAIN

Connector:C9031

Description

LH SIDE AIR CURTAIN

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

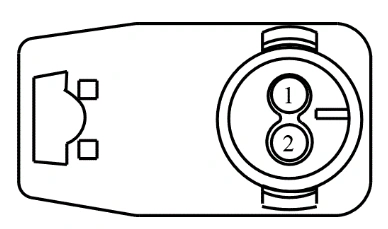

Connector End View C9031 - LH Side Air Curtain — original illustration 1, reference 4501Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers
