Check for Terminal Part Numbers

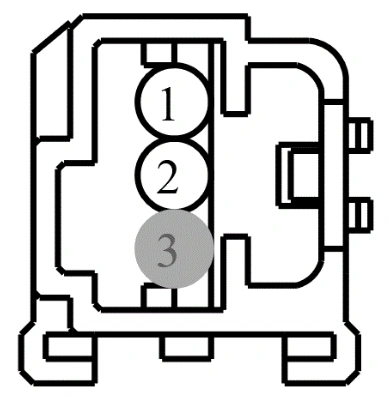

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VPRC2 (WH-BN) 22 | CTRL MOD. - CONVERTIIBLE TOP SENSOR RH # SIGNAL | ||
2 | LPRC1 (YE-OG) | 22 | CTRL MOD. - CONVERTIIBLE TOP SENSOR RH # VPWR | |
3 | * | * | Not Used |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1103 | Service Part Number: 3U2Z-14S411-EXAB Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Lamp - PRNDL Indicator |
