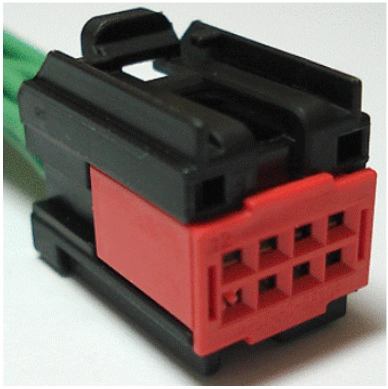

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
3 | CPR24 (GN-VT) | 22 | SWITCH - CONVERTIBLE ROOF UP | |
4 | CPR23 (BU-OG) 22 | SWITCH - CONVERTIBLE ROOF DOWN | ||
5 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
6 | * | * | Not Used | |
7 | * | * | Not Used | |
8 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION |
Available Pigtail Kits
Service Part Number:
Pigtail Kit Part Number
3U2Z-14S411-BGB
WPT-995
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses
Lamp - Dimmer Switch
Switch - 4x4 Control
