Connector End View C9013 - Convertible Top Switch

OEM Connector End Views

Source configuration appliesSource reference 4,499HTML edition

← Chapter contents Manual collection

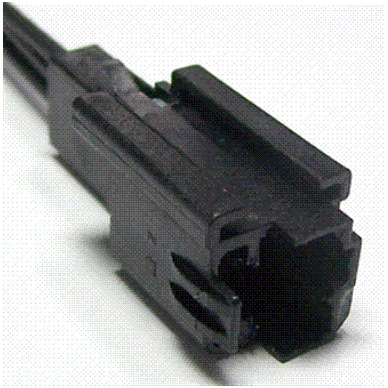

Connector End View C9013 - Convertible Top Switch — original illustration 1, reference 4499Original colors & callouts · Select to enlarge

Module - Radio Power Antenna

Switch - Overdrive Cancel

CONNECTOR VIEWS > CONNECTOR END VIEW C9013 - CONVERTIBLE TOP SWITCH

Connector:C9013

Description

CONVERTIBLE TOP SWITCH

Color

Harness

14335

Base Part #

part# N/A

Service Pigtail

See Below

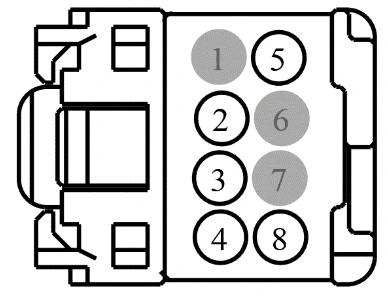

Connector End View C9013 - Convertible Top Switch — original illustration 2, reference 4499Original colors & callouts · Select to enlarge
