Connector End View C9032 - RH Side Air Curtain

OEM Connector End Views

Source configuration appliesSource reference 4,503HTML edition
← Chapter contentsManual collection

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

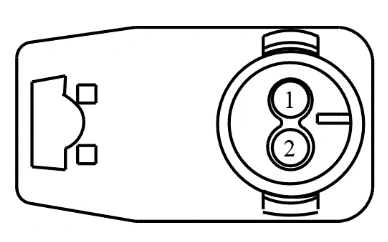

Connector End View C9032 - RH Side Air Curtain — original illustration 1, reference 4503Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR111 (BN-WH) 22

CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE +

2

RR111 (YE-VT)

22

CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1225

Service Part Number:

BU2Z-14S411-BHA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Ford_Mustang_all_2015-2017.pdf · source reference 4503
