Engine - Overview — Overview

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,564HTML edition
← Chapter contentsManual collection

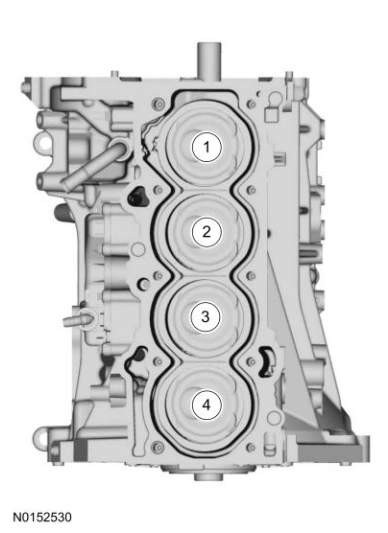

Engine - Overview — original illustration 1, reference 4564Original colors & callouts · Select to enlarge

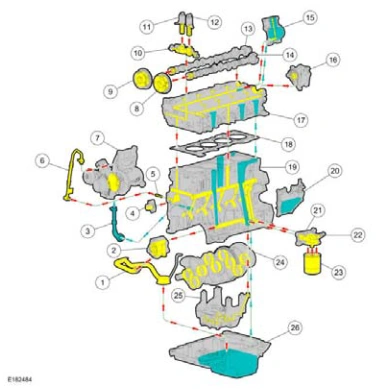

Engine Oil Flow Illustration

Engine - Overview — original illustration 2, reference 4564Original colors & callouts · Select to enlarge

Item

Description

1

Oil pump screen and pickup tube

2

Oil pump

3

Turbocharger oil return tube

4

Timing chain tensioner

5

Turbocharger oil filter

6

Turbocharger oil supply tube

7

Turbocharger
