Item | Part Number | Description |
1 | 8509 | Coolant pump pulley |
2 | 6K682 | Turbocharger |
3 | 9G479 | Turbocharger heat shield |
4 | 8B535 | Coolant outlet tube |
5 | 9C374 | High-pressure fuel pump cover |
6 | 9A397 | High-pressure fuel pump bracket |
7 | 9D376 | High-pressure fuel pump |
8 | 9U550 | High-pressure fuel pump drive unit cover |
9 | A413 | High-pressure fuel pump drive unit |
10 | 8K556 | Coolant outlet |
11 | 2A451 | Brake vacuum pump |
12 | 9U550 | Brake vacuum pump cover |
13 | 12A648 | Engine coolant temperature (ECT) sensor |
14 | 6477 | Flywheel |
15 | 6375 | Flexplate |
16 | 6A228 | Accessory drive belt tensioner |
17 | 8575 | Thermostat assembly |
18 | 9F797 | Fuel rail |
19 | 9U550 | Fuel rail shield |
20 | 9424 | Intake manifold |
21 | 9F991 | Throttle body |

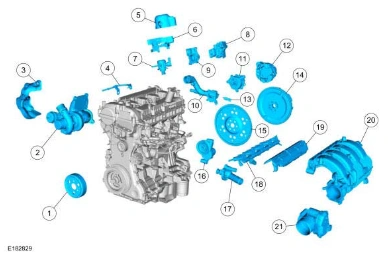

Engine - Front and Upper Components
