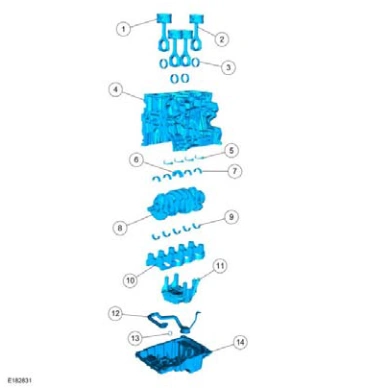

Item | Part Number | Description |
1 | 6110 | Piston (4 required) |
2 | 6200 | Connecting rod (4 required) |
3 | 6211 | Connecting rod bearing (8 required) |
4 | 6010 | Cylinder block |
5 | 6K868 | Piston oil cooler valve (4 required) |
6 | 6337 | Cylinder block crankshaft main thrust bearing |
7 | 6333 | Cylinder block crankshaft main bearing (4 required) |
8 | 6300 | Crankshaft assembly |
9 | 6A338 | Crankshaft main bearing beam bearing (5 required) |
10 | - | Main bearing beam (part of 6010) |
11 | 6K360 | Balance shaft assembly |
12 | 6622 | Oil pump screen and cover assembly |
13 | 6625 | Oil pump screen and cover assembly O-ring |
14 | 6675 | Oil pan |
DIAGNOSIS AND TESTING > ENGINE
Engine
