Balance Shaft Backlash — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4572

Balance Shaft Backlash — original illustration 1, reference 4572Original colors & callouts · Select to enlarge

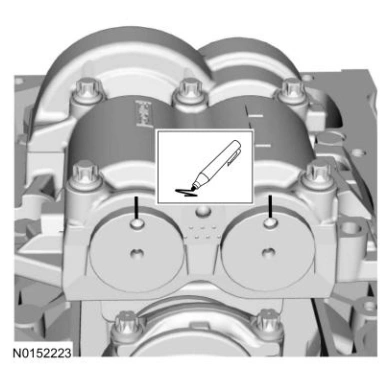

NOTE: Due to the precision interior construction of the balancer unit, it should not be disassembled.

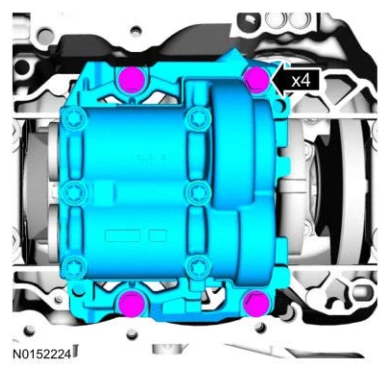

3. Remove the bolts and the balance unit.

Balance Shaft Backlash — original illustration 2, reference 4572Original colors & callouts · Select to enlarge

4. Remove the adjustment shims from the seat faces of the balancer unit.

NOTE: Visually inspect the balancer unit gear for damage and verify that the shaft turns smoothly. If there is any damage or malfunction, replace the balancer unit.

5. Install the master adjustment shims (No. 50) on the seat faces of the balancer unit.

6. With the balancer unit shaft marks at the TDC position, slowly install the balancer unit to the
