Balance Shaft Backlash — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4573

cylinder block to avoid interference between the crankshaft drive gear and the balancer unit driven gear.

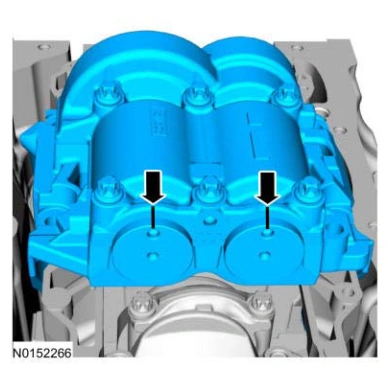

Balance Shaft Backlash — original illustration 1, reference 4573Original colors & callouts · Select to enlarge

7. Install the bolts and tighten.

Torque:

Stage 1: 18 lb.ft (25 Nm)

Stage 2: 31 lb.ft (42 Nm)

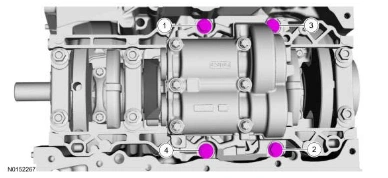

Balance Shaft Backlash — original illustration 2, reference 4573Original colors & callouts · Select to enlarge

8. Remove the special tool and rotate the crankshaft to confirm that there are no meshing problems between the balancer unit gear and the crankshaft gear.

Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
