Balance Shaft Backlash

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,574HTML edition
← Chapter contentsManual collection
Balance Shaft Backlash — original illustration 1, reference 4574Original colors & callouts · Select to enlarge

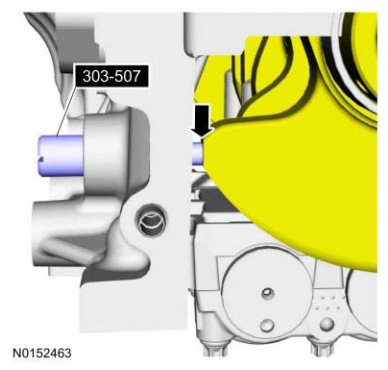

9. Install the special tool and rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the Crankshaft TDC Timing Peg. The engine is now at TDC.

Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Balance Shaft Backlash — original illustration 2, reference 4574Original colors & callouts · Select to enlarge

10. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
