weight is up against the Crankshaft TDC Timing Peg. The engine is now at TDC.

Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

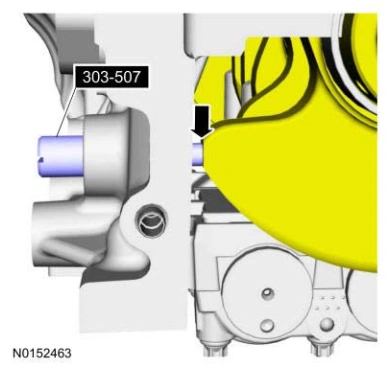

Balance Shaft Backlash — original illustration 1, reference 4577Original colors & callouts · Select to enlarge

14. With the balancer unit shaft marks at the TDC position, slowly install the balancer unit to the cylinder block to avoid interference between the crankshaft drive gear and the balancer unit driven gear.

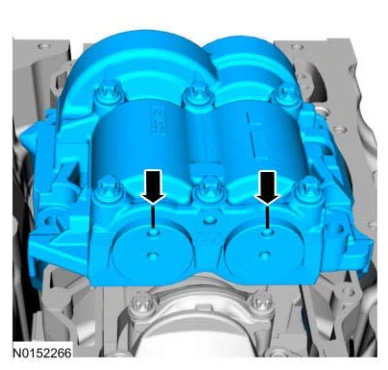

Balance Shaft Backlash — original illustration 2, reference 4577Original colors & callouts · Select to enlarge

15. Install the bolts and tighten.

Torque:

Stage 1: 18 lb.ft (25 Nm)

Stage 2: 31 lb.ft (42 Nm)
