NOTE: Measure the clearance of each valve at base circle, with the lobe pointed away from the tappet.

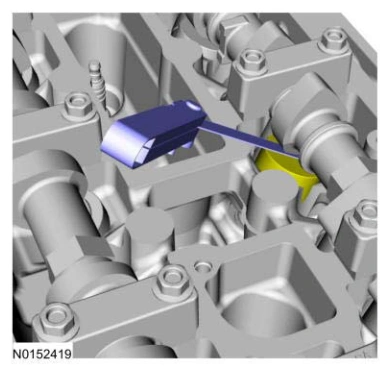

3. Use a feeler gauge to measure the clearance of each valve and record its location.
Use the General Equipment: Feeler Gauge
4.
NOTE: The number on the valve tappet only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.
NOTE: Select tappets using this formula: tappet thickness = measured clearance + the existing tappet thickness - nominal clearance.
NOTE: The nominal clearance is:
intake: 0.25 mm (0.0095 in).
exhaust: 0.36 mm (0.0142 in).
NOTE: The acceptable clearances after being fully installed are:
intake: 0.19-0.31 mm (0.007-0.012 in).
exhaust: 0.30-0.42 mm (0.012-0.017 in).
