Timing Chain — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,193HTML edition
← Chapter contentsManual collection
Timing Chain — original illustration 1, reference 5193Original colors & callouts · Select to enlarge

NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

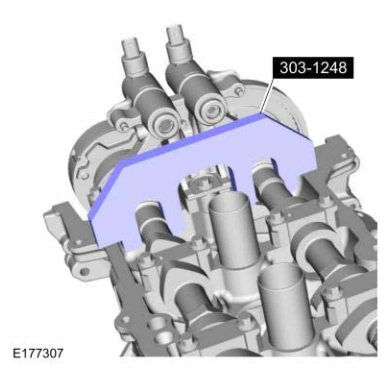

4. Install Special Service Tool: 303-1248 Camshaft holding tools.

Timing Chain — original illustration 2, reference 5193Original colors & callouts · Select to enlarge

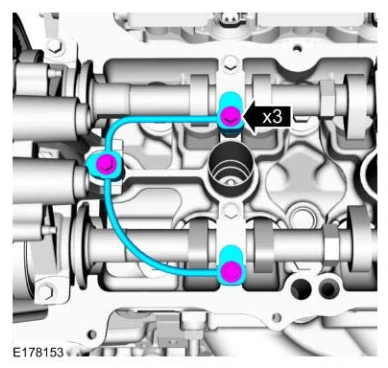

5. Remove the bolts and the RH oil tube.

Ford_Mustang_all_2015-2017.pdf · source reference 5193
